25mm focal length 800-1700nm SWIR lens
|
Project |
Parameter |
|
Target Surface |
1.1” |
| Focal Length |
25mm |
|
Interface |
C-Mount |
| F/# |
F1.4 |
|
Working Distance |
0.1m-Infinite |
| Maximum Field of View Angle (Diagonal x Horizontal x Vertical) |
37° × 30° × 23° |
|
Flange Focal Length |
17.526mm |
| Rear Focal Length (inair) |
11.77mm |
|
Operation Method |
Focusing: Manual; Aperture: Manual |
|
TV Distortion |
0.5% |
|
Filter Size |
M40.5× 0.5 |

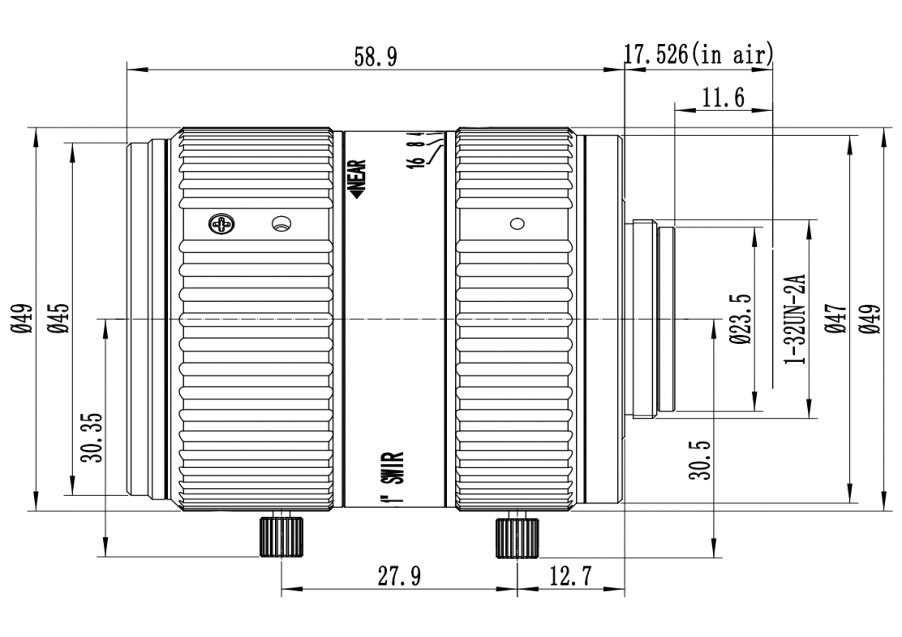

| Lens Size (Width x Length) |
Φ49*67.8mm |
|
Weight |
246g |
| Working Temperature |
-10℃~50℃ |
|
Working Wavelength |
800-1800nm |
|
Definition |
5MP |
| M.O.D |
0.1m |
| Total Length of Track |
65mm |
