SWIR lens with a focal length of 8mm, 800-1700nm
|
Project |
Parameter |
|
Target Surface |
1/1.2” |
| Focal Length |
8mm |
|
Interface |
C-Mount |
| F/# |
F1.4 |
|
Working Distance |
0.1m-Infinite |
|
Maximum Field of View Angle (Diagonal x Horizontal x Vertical) |
75° × 67° × 44° |
| Flange Focal Length |
17.526mm |
|
Rear Focal Length (inair) |
8mm |
| Operation Method |
Focusing: Manual; Aperture: Manual |
|
TV Distortion |
0.9% |
| Filter Size |
M46× 0.75 |
|

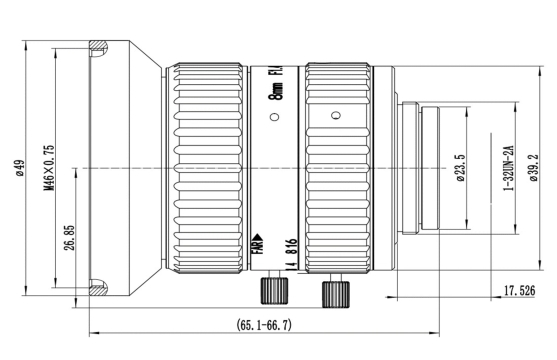

Lens Size (Width x Length) |
Φ49*66.7mm |
|
Weight |
195g |
| Working Temperature |
-20℃~60℃ |
|
Working Wavelength |
800-1700nm |
| Definition |
5MP |
|
M.O.D |
0.1m |
| Total Length of Track |
73mm |
